TGA/FTIR

TGA/FTIR analysis of Volatile Components in a Polymer Matrix

• Solvent compositions and total volatiles were determined in a polymer sample at held at 100C for 1 hour.

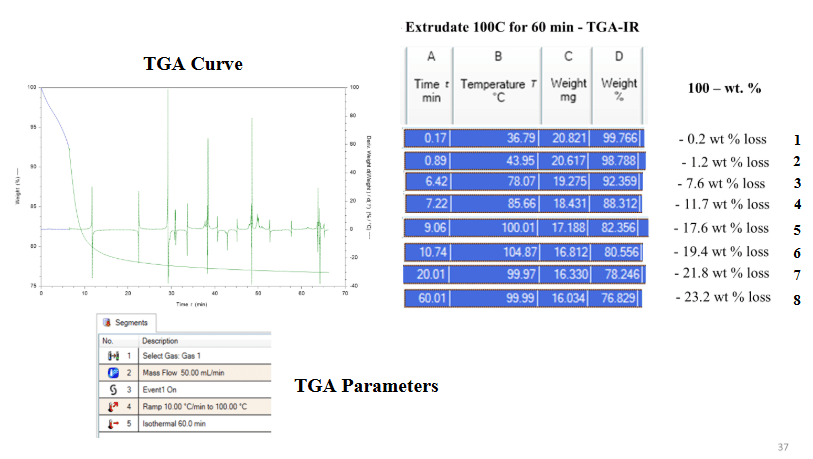

  • With TGA we determined the total percent volatiles after 1 hour drying @ 100C.

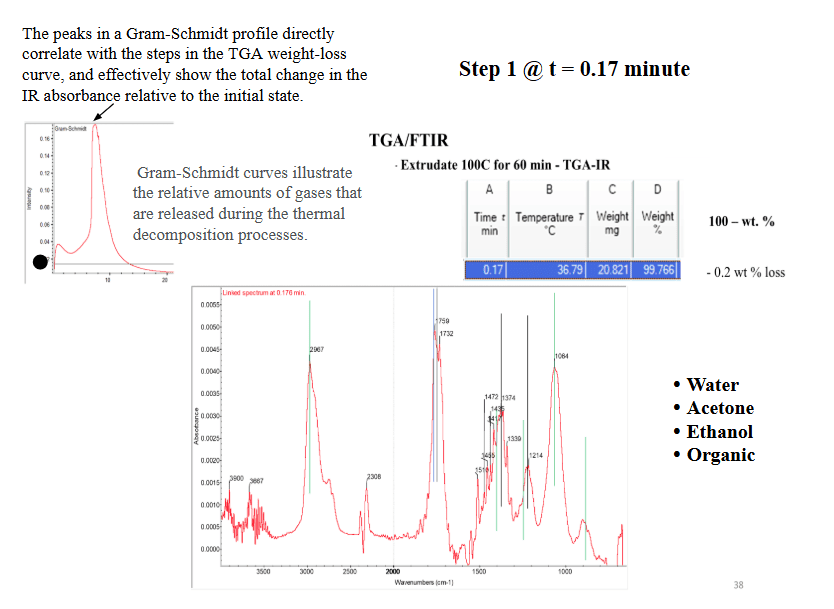

  • With an in-line FTIR gas cell we identified all the volatiles lost during a 1-hour soak.
  • FTIR was used to determine the percent weight loss of each volatile component based on separation of components by their identifiable spectra.
  • TGA/FTIR analysis has provided quantitative information about weight loss and thermal stability of volatile components lost on drying.

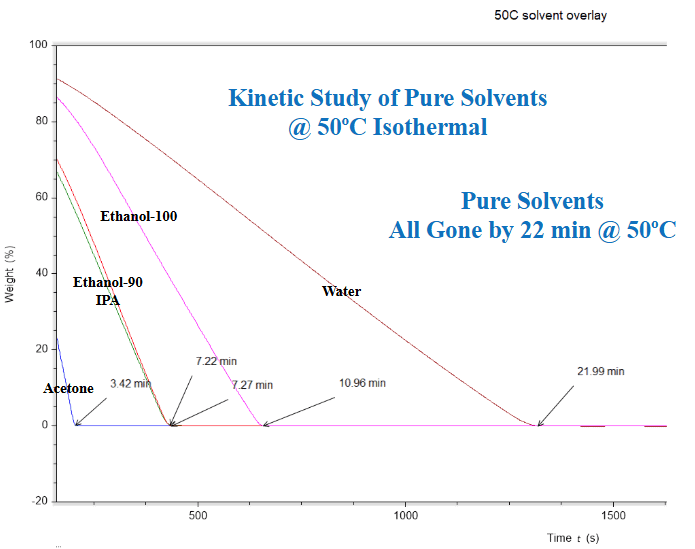

Pure Solvent TGA Overlays

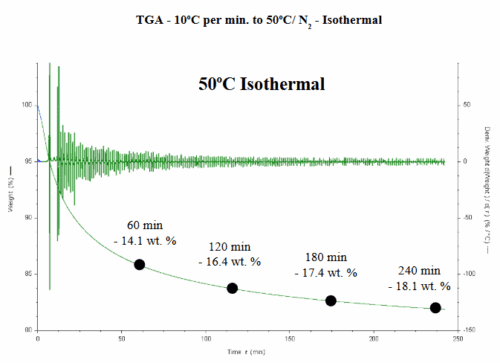

Volatilization Curve of Solvents in a Polymer Matrix

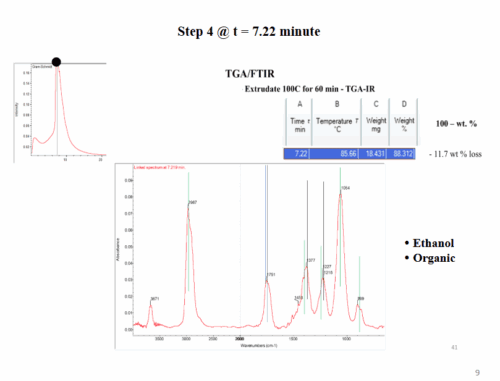

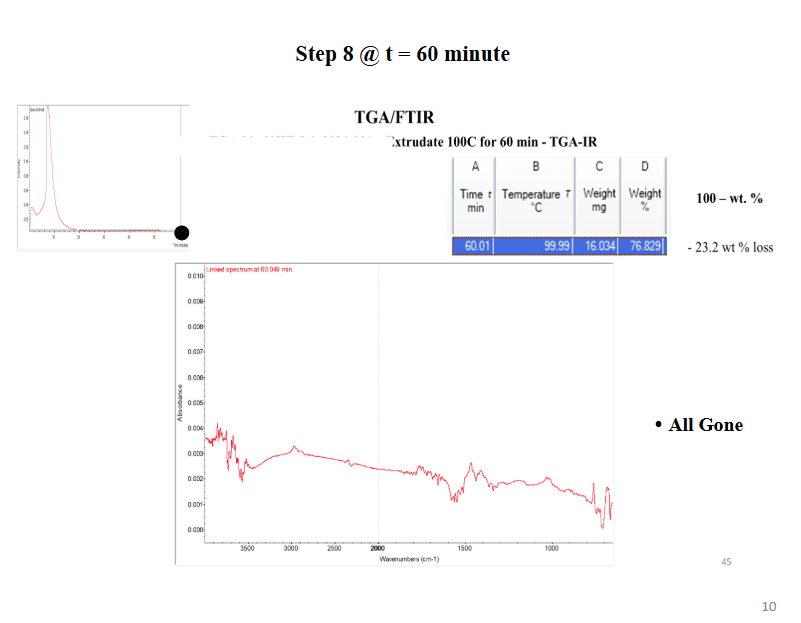

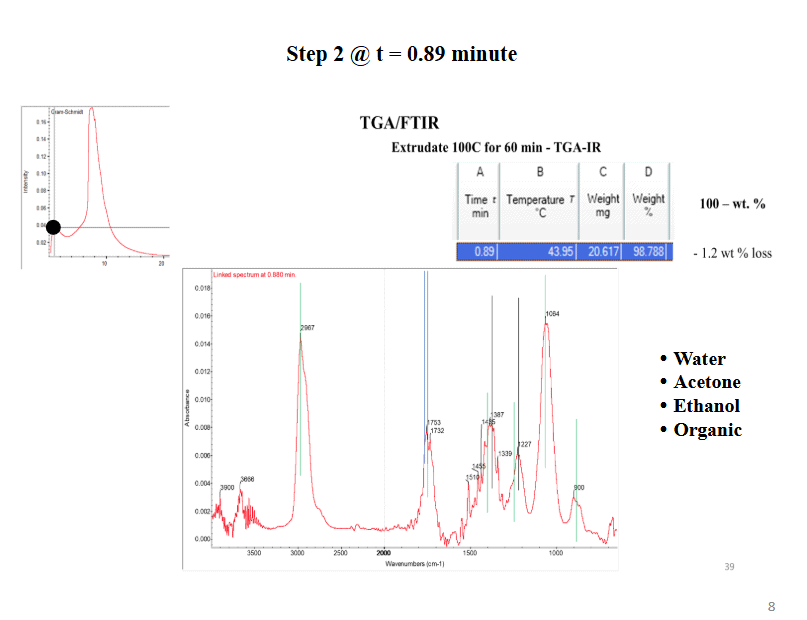

TGA/FTIR Heating Example: 100C for 1 hour Isothermal in nitrogen
